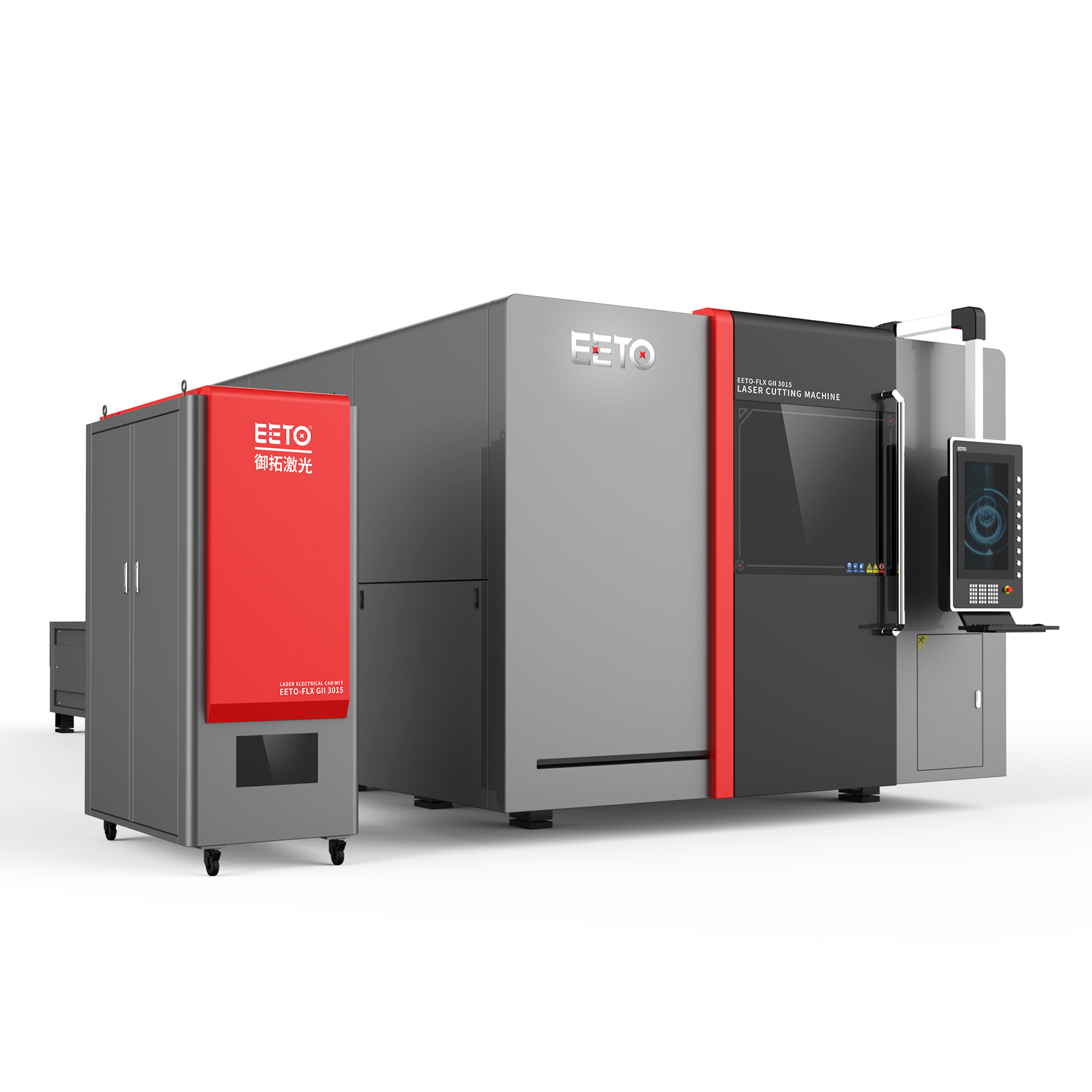

FLX Gll Series High Power Fiber Lazer Cutting Machine

EETO-FLX-GII series product is our new generation exchange table laser cutting machine. This new product is an improvement after collecting customer feedback after our first-generation product was widely put on the market. It's designed for metal sheet cutting processing. And the high lights of this model like below:

HIGHLIGHT of EETO-FLX-GII LASER CUTTING MACHINE

• Fully enclosed integrated design to ensure operator safety.


• Production environment adaptation expert, with extreme ergonomic design.

• Beckhoff closed-loop EtherCAT control system ensures ultra- fast and precise cutting.

• High precision transmission components and parts, such as German reducer (Alpha), gear and pinion are adopted.

• Steel welded structure of machine bed with pipe-sheet welded, long term stability 10+ years and high positioning accuracy.

MAIN CONFIGURATION

Machine body

• Machine body was welded by thick pipe and also triangle structure used to make sure during long service time without distortion and vibration.

• Add brass support, the high reflective material to protect the machine body, and prolong the service life of the equipment.

• High precision milling to keep running accuracy and cutting performance, error under 0.01mm/m.

• Sand Blasting helps paint attach more closely to the surface of machine bed,and avoid metal surface from getting rust.

• With partition ventilation function. After tested, this new exhausting system can improve around 70%~80% fume-extracting effectiveness compare with other traditional designs.




Control System Germany Beckhoff

EETO-FLX-GII Series laser cutting machine is equipped with Beckhoff control system and bus motor. Beckhoff control system is top brand industrial control system from Germany. The main features of the system are as follows:

• Open Technology  EtherCAT is an internationally standardized open technology, meaning anyone is free to use the technology in a compatible form. Today, the EtherCAT Technology Group is the world's largest field bus organization.

• Easy  EtherCAT is easier than classic field bus systems via onboard diagnostics with fault localization, automatic node addressing and no need for network-tuning.

• Functional safety  Safety over EtherCAT is just like EtherCAT itself-lean and fast. Functional safety is built directly into the bus with options for both centralized and decentralized safety logic. Thanks to the Black Channel approach, it is also available for other bus systems.

Laser Cutting Head Germany Precitec

The German Precitec laser cutting head impresses worldwide with its high performance and automation. Precitec cutting head increased machine utilization and a shorter payback period. The amount of rework is reduced to a minimum.

• Saving cycle time and operating costs. With high quality and high speed, you always achieve the optimum process results both in terms of quality and speed.

• The performance is stable. The Precitec cutting head works trouble-free up to 30 kW laser power thanks to its sophisticated cooling concept and extended travel paths.

• The function are powerful. With PierceTec - the automated piercing of the material - you achieve consistent hole and surface quality and can reduce the amount of rework required.

Small Detail Makes a Big Difference

External Optical Fiber

Are you still using inner fiber optic?

Did you trouble you when installing the machine?

Are you still paying high fees for fiber damage and fiber contamination?

• The external optical fiber specially improved to reduce the damage of the optical fiber makes the installation of the machine so simple. You only need to remove the cutting head without removing the optical fiber, and then connect the cutting head to the external interface of the optical fiber and hang the optical cable on the machine.

• This detail is rare in the market. It not only solves some of the problems of lack of experience in installing the machine, avoids dismantling the optical fiber to cause damage, but also scientifically avoids the internal pollution of the optical fiber, so that your machine can last longer.

• The external optical fiber makes you no longer need to frequently delay the construction period due to the damage of this important component, which saves you a lot of maintenance and replacement costs.

European Standard Electrical Cabinet

EETO’s machines is customized for overseas users. Adapted European standard electrical cabinet, the wiring is neat and the color of the wires meets the requirements of European standards.

Plug-in Connector

Are you still worry about the long installation period?

Are you still freak out about the messy arrangement of wire?

Are you still headache about the troubleshooting during debugging?

EETO understands your situation and adopts plug-in connectors on our machines. That helps a lot to save the machine installation period. And it’s easier to find the trouble spot once the machine is malfunctioning.

Closed-Loop Air Circuit Cabinet

1. If the auxiliary gas runs out, but the operator cannot figure it out on time. Then the workpieces damaged, What should we do?

2. If the auxiliary gas is too wet or too dirty, cause the optical glasses to contaminate then the whole cutting head is damage. What should we do?

3. If we need to cut various materials, keep changing auxiliary gas causes the gas cost to increase. What should we do?

Here, EETO has a solution for those issues. Our closed-loop air circuit cabinet can save cost, increase the production speed and prolong the lifetime of the machine.

Dust Cover & Fabric Bellows

• These small details of the dust cover bellows are easy to be overlooked, but they are extremely important for plant safety, personal safety and machine safety.

• Shielded wires and corrugated pipes are all fireproof materials, and attention is paid to the overall safety protection of each small device. A small protective device sometimes protects not only a peace of mind, but also a living life.

• The dust cover can not only prevent dust, but also reduce the risk of fire when the machine is used in high frequency.

Cutting Sample
