Industrial Fiber Laser Cutting Machine Manufacturer

Fiber lasers are the standard for industrial-level metal cutting. Their higher electro-optical conversion efficiency surpasses that of CO2 lasers, averaging 30-35% compared to 10-15%. For sheet metal processing in the 25mm range, fiber laser cutting machine in 3kW to 12kW enclosures can do the majority of work. Thicker plates and reflective materials like aluminum and brass require 12kW or higher. CO2 lasers can still be used for non-metal materials – textiles, leather, wood, plastics, and the like – but for most accurate processing of steel, stainless steel and aluminum, fiber is the preferred method.

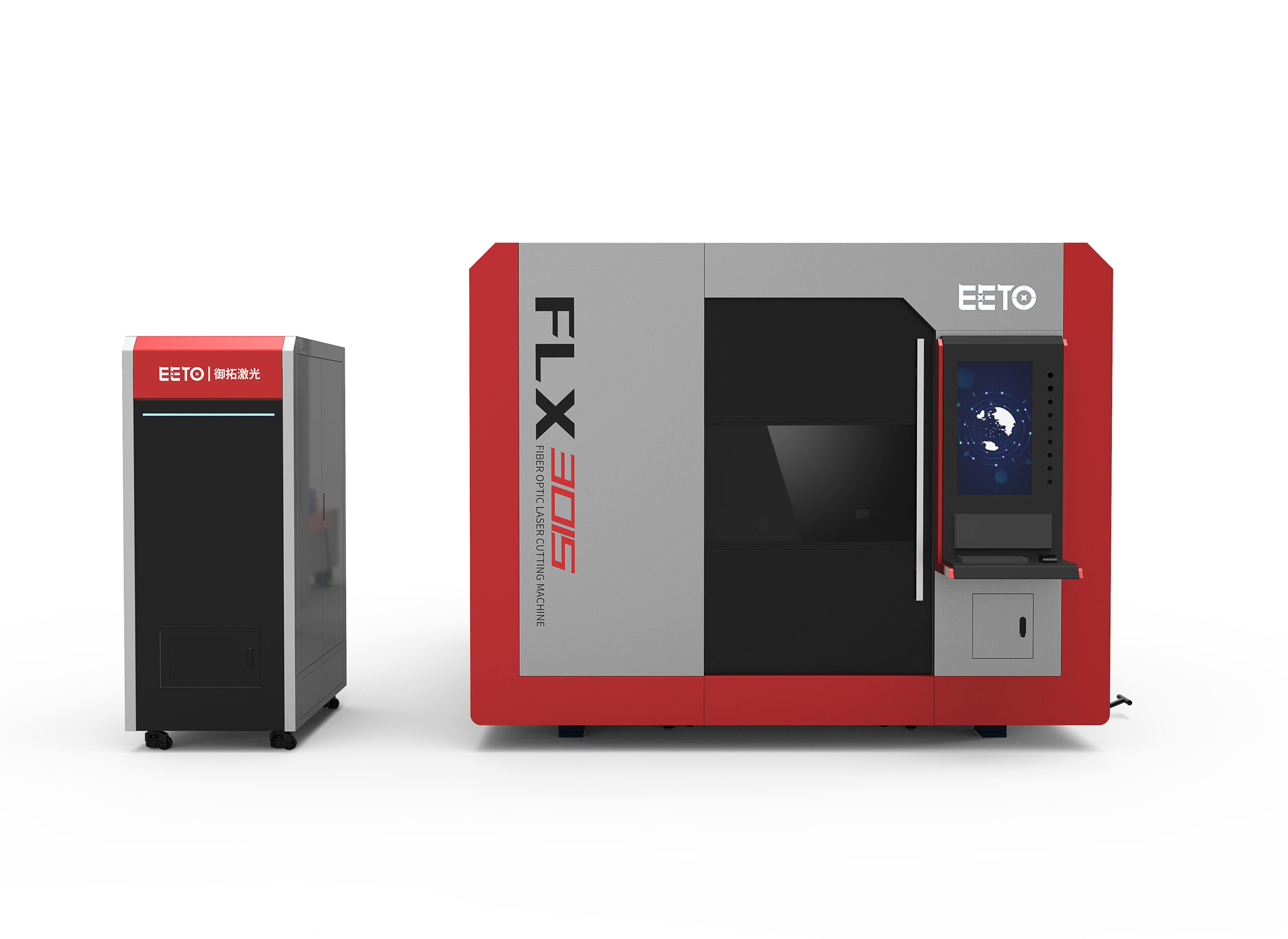

Entry-level fiber laser cutting machines with 1-3kW power typically start from $25,000 to $60,000. Mid-range exchange table models in the 6-12kW range fall between $80,000 and $180,000. High-power gantry systems at 20kW and above can reach $200,000 to $400,000 depending on table size and automation level.

Maximum cutting thickness depends on laser power. A 3kW fiber laser cuts 18mm carbon steel and 8mm stainless. A 6kW handles 20mm and 16mm respectively; a 12kW pushes to 25mm carbon steel and 20mm stainless. High-power 20kW systems reach 40mm carbon steel and 30mm stainless.

CO2 lasers generate beams from a gas excitation source at a 10.6 micrometers laser wavelength. Fiber lasers use a doped standard optical fiber at a 1.06 micrometers laser wavelength. The shorter wavelength equates to considerably better metal absorption, leading to considerably faster cutting speeds and more economical costs of operation. Fibers require almost no maintenance of the beam delivery path for a typical lifespan in excess of 100,000 hours, CO2 require constant mirror realignment and inert gas flow. Both can be used for cutting non-metals like leather, acrylic and wood. For steel, aluminum and copper processing, a fiber laser will always provide better throughput of parts per economy of cost.

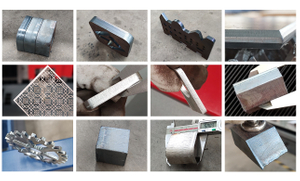

Fiber laser cutting machines can machine most common metals: carbon steel, stainless, aluminum alloy, brass, copper, galvanized steel, titanium and spring steel. Most machines can process everything from 0.5mm to thick plates depending upon laser power. All highly reflective materials like copper and brass will require a power level of at least 6kW for processing. Fibers do not offer support for non-metallic materials: wood, plastic, acrylic. For those applications, CO2 and engraving systems are better suited.

Determine maximum material thickness and the number of parts per hour your shop needs. A facility processing mostly 1-12 mm mild steel will require far less laser power than a shop cutting 20 mm stainless steel on a regular basis. Next, account for your throughput needs: high speed is nothing unless the process is automated to keep up with the machine. Third, consider your workspace. Enclosed machines will contain fumes and debris during cutting in an indoor setting. Fourth, compare the ownership costs: consumables, power draw, downtime, and maintenance requirements. Lastly, confirm that a support network exists near your shop. Quick access to parts and service keeps you running.

Fiber laser cutting machine daily operating cost breaks down into several categories. Electricity runs about $5-25 per hour depending on laser power and whether the machine is actively cutting or idle. Assist gas costs vary widely: nitrogen cutting of stainless steel runs around $15-40 per hour depending on flow rate, while oxygen cutting of carbon steel is much cheaper. Consumables such as lenses, nozzles, and protective windows cost between $200-600 per month. Most production shops see a total operating cost of roughly $15-60 per hour.

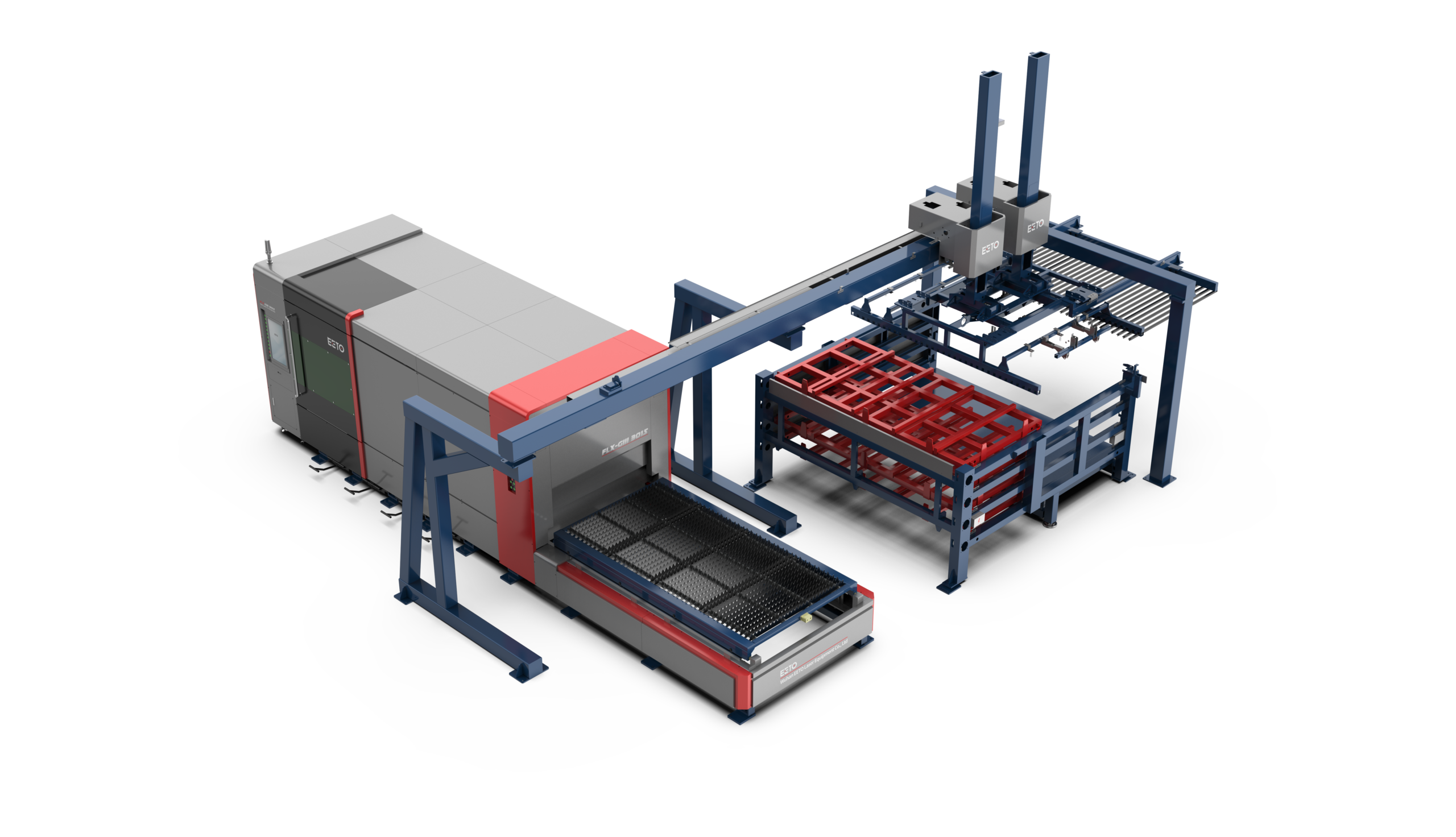

Laser cutting shops and metal fabricators tend to have healthy margins as long as they are run efficiently. A 2 shift fiber laser cutting machine will consume enough to recoup the original purchase price in 18 to 36 months depending on the job rates in the region. Contract cutting profit margins tend to be around 30 to 55% on material related jobs. The main profit drivers are machine utilization rate, nest quality of material, and speed of quoting and turnaround. Shops that invest in automation like exchange tables and auto loading are able to push utilization over 85%, where the best gain are earned.
