Product Description

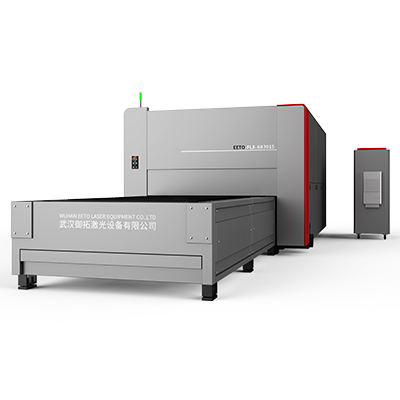

EETO-FLX-Gll series is the most hot-sale model nowadays. It designed with double working table and full-cover, so it is very suitable for the customers who have high requirement for work efficiency and personal safety. It also very suitable for equipping auto-loading device to make the whole cutting system more automation and labour-free.overview
There`s always one bright spot that catches your eye :)
--Closed loop bus control system to ensure high cutting accuracy
--German high-precision transmission system components: reducer, rack, gear, etc.
--Adopt autofocus cutting head to shorten the perforation time of thick plate cutting
--The cutting head has a built-in zoom module to automatically compensate the focus position.
Basic Information
| Laser Power | 3000W-15000W |
| Cutting Thickness | 1-40mm |
| Maximum Traveling Speed | 150m/Min |
| Repeatability Accuracy | ±0.05mm |
| Position Accuracy | ±0.02mm/M |
| Origin | China |
Main Configuration
We have updated all major components of the FLX-GII series.
In order to cut thicker plates and meet higher requirements and cutting effect, we have upgraded the configuration comprehensively.
The new generation of FLX-Gll can not only cut the 25-40mm thick plate, but also exchange the workbench for 24 hours without stopping, which greatly improves the cutting speed.
The next generation FLX-GII supports high-power 8000W-15000W lasers (IPG and Raycus lasers are available)
| Main Parts | Previous | Updated |
|---|---|---|
| Laser Cutting Head | BM114(Raytools),Switzerland | Pro-cutter(Precitec),Germany |
| CNC Software | Cyp-cut,China | Beckhoff,Germany |
| Driver Motor | Yasakawa,Japan | Beckhoof,Germany |
| Linear Guide Rails | TBI,Taiwan | Rexroth,Japan |
| Rack and Pinion | YYC,Taiwan | Alpha,Germany |
| Reduction Gear | Shimpo,Japan | Alpha,Germany |
Laser head anti-collision
Detect obstacles such as uplifted workpieces in advance to avoid damage to the cutting head and ensure continuous processing.
Start cleaning
After the perforation is completed, the laser head executes the vortex motion trajectory to avoid the residual slag on the edge from affecting the cutting effect.
Constant air pressure
Ensure that the actual cutting air pressure is consistent with the input value.
Lightning piercing
The perforation function is executed from the cutting head in position, and the cutting head drops to the cutting height to complete the perforation.
No waste edge cutting
Unbounded cutting is not affected by the format and material, one-key opening function, no need to repeatedly adjust, no programming, and check to complete the expected cutting.
Automatic cleaning of copper nozzle
Automatically clean the nozzle to cut slag without manual intervention, fast and efficient.
Thick plate cutting heat compensation
Focus compensation solves the problem of cheap focus caused by thermal deformation of the lens and ensures stable cutting.
Save gas consumption
Professional nozzles use cutting copper nozzles with corresponding apertures to cut plates of different thicknesses to reduce gas consumption and improve cutting efficiency.
Q:What's the working area of our fiber laser cutting machine?
A:Our standard working areavis 3000*1500MM.But we can also do customized sizes as request.
Q:What the laser powe of our fiber laser cutting machine?
A:Now our standard laser power include 1000W,1500W,2000W,3000W,4000W,6000W,8000W-15000W.
Q:What materials can we cut?What's the cutting thickness of fiber laser cutting machine?
A:Fiber laser cutting machine can cut most metal materials,but generally used for cutting carbon steel and stainless steel.Cutting thickness is from 0.5mm to 40mm according to different laser power.
Q:What are consumables of fiber laser cutting machine?
A:Generally include protection lens,cutting nozzle and ceramic body.
Q:Can we cut both sheet plate and pipe in one machine?
A:Yes,our sheet and pipe lasr cutting machine can do that.
Q:What's the delivery time?
A:Generally speaking,lead time is 30-50 working days after deposite received.
Cutting Samples
6mm brass cut
8mm aluminum plate cutting hole
1mm stainless steel sharp angle cutting
5mm stainless steel latter cut
Precitec Auto-focus Laser Cutting Head
