FCS Enclosed Fiber Laser Cutter Space-Saving & EU-Compliant

Language

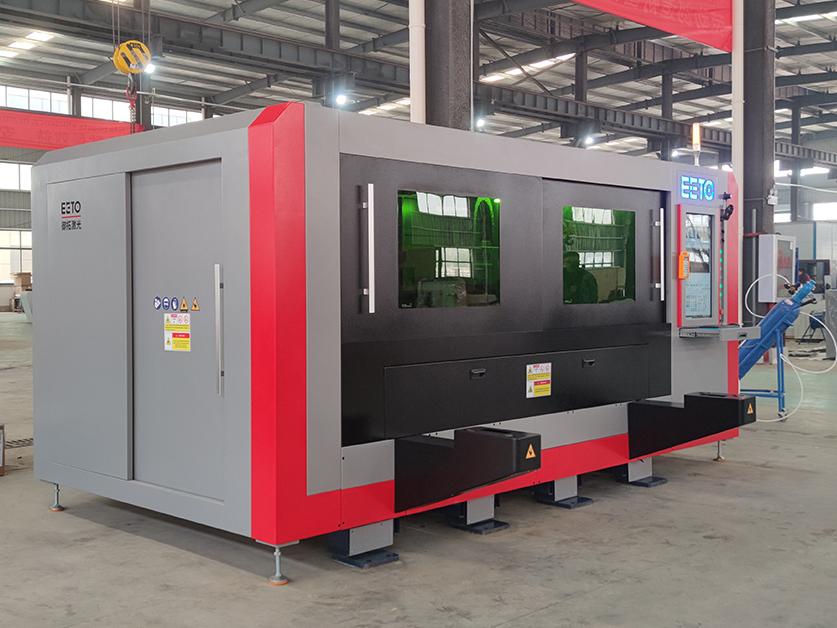

Enclosed & Space Saver Metal Fiber Laser Cutter

The FCS Series is engineered for space-starved workshops demanding industrial capability and EU-grade safety.

Unlike traditional exchange table fiber laser cutters, it delivers identical cutting performance – all within a fully sealed enclosure.

Inquiry

Drawer-Style in Action: Thick Metal, Tiny Footprint

Compact Performance Without Compromise! Cut Thicker, Faster, Cleaner – Even in 20m² Spaces

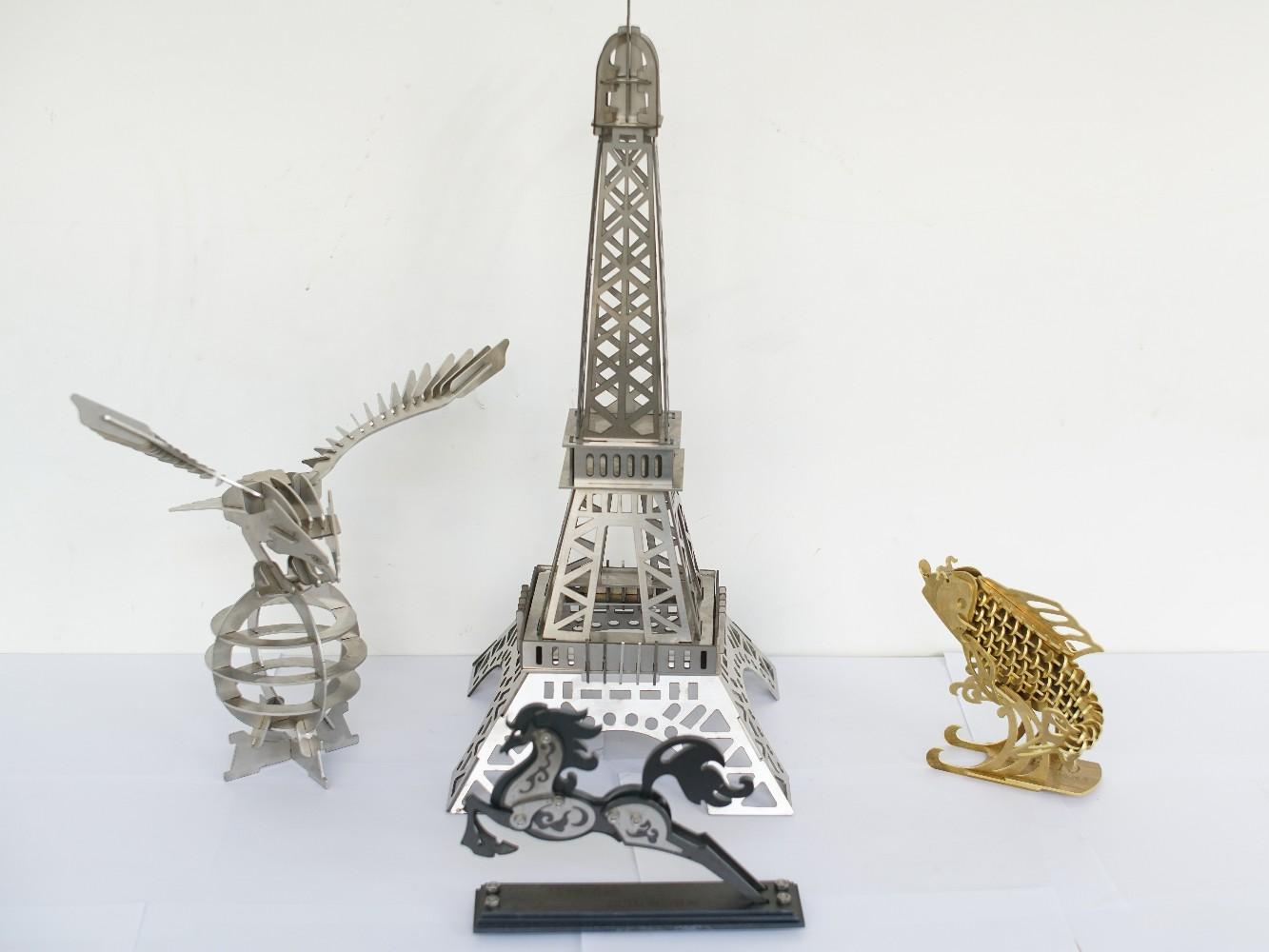

Precision Cutting for Diverse Metal Materials

Specifications:

Power：1.5KW, 2KW, 3KW, 6KW
Cutting Area (FCS3015): 3050*1550mm (For Large Panels)
Cutting Area (FCS2010): 2050*1050mm (Compact Industrial Use)
Cooling Way: Air Cooling, Water Cooling (Optional)
Max Loading Capacity: 1000kg
Machine Body Size (FCS2010): 4190x3195x2080mm
Machine Body Size (FCS3015): 5091x3604x2080mm
Shipping Solution: 1 * 20Ft Container (Minimum Disassembly For Fast And Easy Installation)

Materials:

Carbon Steel, Stainless Steel, Brass, Copper, etc

Ideal for High-Density Workshops

50% Smaller Footprint, 100% Enclosed Safety – Meet EU Demands in Tight Spaces. Engineered for workshops where every square meter counts. Request a space-savings calculator to prove it in your facility.

Unlike traditional cutters, the FCS Series solves two critical challenges:

Open-type Single Table Machine: Exposed operation = safety risks + pollution
Dual-table Laser Cutter: Safe but need 50% more floor space with redundant structures

Our drawer-style enclosure FCS Series machine ideal for High-standard Industries: Electronics manufacturing, education & r&d labs, food processing equipment, medical device makers, urban job shops, aerospace, automotive industry and etc.

Inquiry

Reliable Core Components

The FCS3015 Series is built with trusted, best-selling brand components. This ensures long-term stability, consistent performance, and the cutting quality you can rely on.

Max Fiber Laser Source
Boci Laser Cutting Head
Laser Cutting System
Servo Motors

Max Fiber Laser Source

Advantages of Maxphotonics MFSC1500W-6000W CW Fiber Laser Generator:
1. Smaller Size With Higher Stability: 60% reduction in volume, higher flexibility when integrated in to system.
2. High Level Vertical Integration: All key components are designed and produced in-house with strict quality control, high consistency and reliability.
3. Excellent Material Processing Performance: High speed in thin sheet cutting, strong capability in thick material processing.
4. Compact Design, Maintenance Free: Highly integrated system with modular design, easy maintenance significantly reduce TCO.
Boci Laser Cutting Head

Advantages of Boci Laser Cutting Head:
1. Protective Lens Temperature Monitoring: Real-time monitoring of the status of the protective lens. Warning system can work quickly when the lens are polluted and it can reduce the negative effects of polluted lens on cutting quality.

2. Air Pressure Monitoring: Real-time monitoring of gas flow rate during cutting, effectively reduces the affects of air pressure deficiency / exaggerated on cut surface quality.

3. Anti-Collision Protection: The anti-collision design of the cutting head effectively reduces the depot-repair probability, without technical support, customers can replace the broken parts by themselves, and the maintenance cost is lower.

4. Closed-loop Monitoring: Built-in multiple sets of sensors, real-time closed-loop intelligent monitoring, rapid diagnosis of problems and proactive warning.
Laser Cutting System

Advantages of Bochu Fscut 2000E/4000E:
1. Adaptive pierceing :Emit laser during the Z axis moving down, piercing efficiency has been improved 9%.
2. Fly cut: Flying cutting path can be generated for most graphics,reducing the pauses after cutting
completion and further improving efficiency.
3. Micro-joint:Optimized micro-joint points, the connection points are smaller, it is easier to separate parts, and the cutting surface is smoother.
4. Torque detection: When the system detects torque abnormal, it will stop moving immediately to protect from serious injury when a collision happens.
5. Anti-collision: Intelligently adjusting the lifting height of the cutting path based on the cutting sequence of the parts to achieve obstacle avoidance during movements.
6. Frame simulation: Running along the outer line before processing to ensure that the machining area
does not exceed the area of the remaining material, and ensure safety.
7. Real-time monitoring: Combined with blt series cutting head, it can monitor the temperature of the
protective lens and gas pressure, and raise an alarm when abnormally happens.

8. Soft acceleration and deceleration: Leveraging the advantages of a bus system, the feedback of motor signals is faster with lower latency, which can protect the motor and machine tool with gentler impact.
Servo Motors

Advantages of Inovance SV660N Servo Motors:
1. Improved performance with ultra-fast current loop.
2. High-speed EtherCAT communications – 125 μs.
3. Seven EtherCAT CiA402 profile (CoE) operation modes are available.
4. Accurate EtherCAT synchronization – 20 ns synchronization jitter.
5. High-resolution feedback encoder.
6. Short output winding.
7. Robust and reliable -designed for harsh environments.
8. Comprehensive data storage in case of failure.
9. Easy installation and fast commissioning.
10. Easy cloning of drive parameters.
11. Guided PC commissioning software with an advanced wizard.

Inquiry

Always Safety First

We prioritize the safety of equipment. All operations must be predicated on safety. This includes the safety of the operating mechanism, electrical safety, personnel protection.

Inquiry

Make Installation the Best Experience Ever

Our Design Principle, Easy, Quick, Reliable Installation. We keep improving for this from day one, and make sure you will get machine ready for your production right away when you get it.

Plug & Play

Most Electrical Wiring works are eliminated by Intergrated Connection Design. Just Plug - n - Play.

Connect & Ready to Start

Connect Gas Supply to Prepared Gas Connectors, and All Gas System is Ready.

Adjustable Footing Design

Our Footing Adjustment Design is Optimized for 1 Person Adjustment Work.

Inquiry

Professional & Prompt After-sales Service

We provide both online and on-site support for installation, training, and troubleshooting. Our responsive service team ensures smooth operation, helping you maximize productivity and keep your business running without interruption.

After-sales Service Content

As we all know after-sales service is a very important part of the whole sales procedure. Many clients worry about it due to the long-distance and less knowledge about EETO and our machine.

We can totally understand your concern. Due to it involves a wide range of work content. Here we list the main item as below and hope it can relieve your concern.

1. Installation Service

2. Training Service

3. Troubleshooting Service
Installation Service

At first, we keep updating our machine design in order to let the clients can install it easier and faster. Such as our plug-in connector, wire marks, and special fiber install method, etc.

Second, we will provide very detailed documents to guide customers on how to prepare the installation site and how to install the machine.

After the machine arrived, we will guide the clients on how to unload and install the machine. And providing textual and graphic documents to make it easy to understand. Our professional technician will also be there to support if you are facing any issues.
Training Service

Besides providing machine user manual to clients, we will also give training like below to make sure they know how to operate the machine during daily production:

1. Safety knowledge training;
2. Introduction of main parts and configurations;
3. Standard procedure of machine turn ON/OFF;
4. Principle of water cooling system;
5. Software operation;
6. Introduction of cutting technique/skills;
7. Introduction of height control system;
8. Equipment maintenance;
9. Simple troubleshooting method and so on.
Troubleshooting Service

In customer support, troubleshooting is very difficult because it requires both the ability to understand what's happening technically in the product and the ability to communicate effectively with customers to get the full details.

Based on previous work experience, our technicians have divided the troubleshooting process into three steps. Through repetition and practice, the below processes can effectively help customers solve the problems encountered in the production process.

1. Understanding what's happening by asking good questions;
2. Isolating and diagnosing the issue by changing one thing at a time;
3. Finding and implementing a fix.
